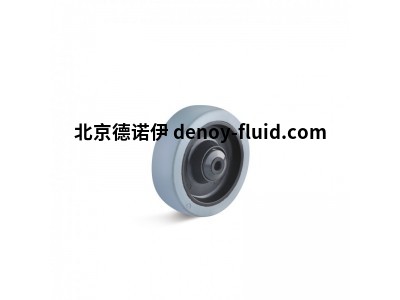

TORWEGGE熱塑性塑料輪 TPKH 灰色塑料輪輞滾珠軸承 VA 80mm
輪子中心由聚丙烯制成，帶不銹鋼滾珠軸承
胎面由熱塑性橡膠制成，灰色
，大約 85° Shore A。
輪子的低磨損特性不會在地板上留下痕跡。
高負載能力、防震和低滾動阻力完善了包裝。
技術規格
軸孔Ø (mm)12
EAN代碼4042974252616
輪圈材質聚丙烯
體重（公斤）0.179
胎面類型圓柱形
胎面顏色灰色的
胎面材料熱塑性塑料
輪轂直徑 (mm)37
輪轂長度（毫米）40
砂輪直徑 (mm)80
輪寬（毫米）33
車輪軸承滾珠軸承 VA
輪型車輪
負載能力（公斤）120
高耐溫性 (°)60
低耐溫性 (°)-20
貨號型號車輪直徑輪寬承載量
0022798
TPKH-100-34-40-K12-VA100mm34mm150公斤
0022800
TPKH-125-40-50-K15-VA125mm40mm200公斤
0022802
TPKH-150-45-60-K20-VA150mm45mm260公斤
0038773
TPKH-160-45-60-K20-VA160mm45mm260公斤
0022804
TPKH-200-50-60-K20-VA200mm50mm350公斤
0038588
TPKH-250-60-75-K25-VA250mm60mm450公斤
TORWEGGE熱塑性塑料輪 TPKH 灰色塑料輪輞滾珠軸承 VA 80mm
TPKH-080-35-40-K12-VA
TORWEGGE熱塑性塑料輪 TPKH 灰色塑料輪輞滾珠軸承 VA 100mm
TPKH-100-34-40-K12-VA
TORWEGGE熱塑性塑料輪 TPKH 灰色塑料輪輞滾珠軸承 VA 125mm
TPKH-125-40-50-K15-VA
TORWEGGE熱塑性塑料輪 TPKH 灰色塑料輪輞滾珠軸承 VA 150mm
TPKH-150-45-60-K20-VA
TORWEGGE熱塑性塑料輪 TPKH 灰色塑料輪輞滾珠軸承 VA 200mm
TPKH-200-50-60-K20-VA
TORWEGGE熱塑性塑料輪 TPKH 灰色塑料輪輞滾珠軸承 VA 250mm
TPKH-250-60-75-K25-VA
| 品牌 | 貨號 | 型號 |
| Burocco | 1AEC2IBAS1D2 | VO - VP/FL - DN40 - PN16 - AISI 316L /AISI 304 - FL PN40 RF - SILIC. - S.118 (magg.) - NA - Dp 16 BAR - A.P. |
| Burocco | ||
| Burocco | 1AEC2IBER2D5 | VO - VP/FL - DN40 - PN16 - AISI 316L /AISI 304 - FL PN40 RF - SILIC. - S.118 (magg.) - NA - Dp 16 BAR - A.P. |
| Burocco | ||
| Burocco | 1AEC2IBES1D2 | VO - VP/FL - DN40 - PN16 - AISI 316L / AISI 304 - FL PN40 RF - SILC. - S.118 (magg.) - NC - Dp 18 BAR - DV |
| Burocco | ||
| Burocco | 1AGC2IBEU1D2S | VO - VP/FL - DN65 - PN16 - AISI 316L / AISI 304 - FL PN40 RF - SILIC. - S.136 (magg.) - NC - Dp 16 BAR - DV |
| Burocco | ||
| Burocco | AKEVSEV54SM1-A ARFUAS14-SM1- |
for VP/FL DN40 NC KIT SOLENOID VALVE 1/4" - 3/2V NC - 24V CC SINGOLO SOLENOIDE + ConNETTORE + UNIDIRECTIonAL FLOW REGULATOR - 1/4"G |
| Burocco | ||
| Burocco | AKEVSEV54SM1-B | for VP/FL DN40 NO KIT SOLENOID VALVE 1/4" - 3/2V NC - 24V CC SINGOLO SOLENOIDE + ConNETTORE + UNIDIRECTIonAL FLOW REGULATOR - 1/4"G |
| Burocco | ARFUAS14-SM1- | |
| Burocco | ||
| Burocco | AKEVSEV54SM1-F ARFUAS14-SM1- |
for VP/FL DN65 NC KIT SOLENOID VALVE 1/4" - 3/2V NC - 24V CC SINGOLO SOLENOIDE + ConNETTORE + UNIDIRECTIonAL FLOW REGULATOR - 1/4"G |
| Burocco | ||
| Burocco | Burocco 氣動接頭 外徑8mm | 氣動控制器氣動管道接頭， |
| Burocco | 外徑8mm | |
| Burocco | CMLD96-114-CC | for VPFL DN40 Drop 18bar, SPRING VO DN65 NC - S.118 - OTEVA 70 |
| Burocco | ||
| Burocco | CPID94-007AGC | for VPFL DN40 Drop 18bar, PISTON VO DN65 2V - NC - S118 - ALLUMINIO ANTICORODAL 6026 ANODIZZATO |
| Burocco | ||
| Burocco | Hansastedt ECO-Line Elektromagnet Satz | KIT SOLENOID VALVE for VP/FL NC/NO |
| Burocco | ||
| Burocco | Hansastedt Premium-Line Elektromagnet Satz | KIT SOLENOID VALVE for VP/FL NC/NO |
| Burocco | ||
| Burocco | ROAE00AS1A | for VPFL DN40 Drop 18bar, Sealing Kit - VALV.ON-OFF - VPFL/SBS - DN40 - PTFE - S.118 (magg.) - NC |
| Burocco | ||
| Burocco | ROAE00ES1A | for VPFL DN40 Drop 18bar, Sealing Kit - VALV.ON-OFF - VPFL/SBS - DN40 - SILIC. - S.118 (magg.) - NC |
